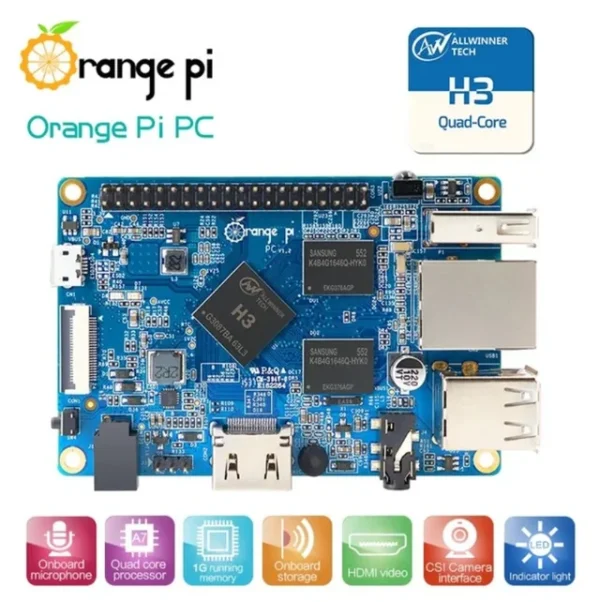

Orange Pi PC v1.3 1GB (usado com garantia) (alternativa Raspberry Pi)

Orange Pi – alternativa Raspberry Pi

Computador single board baseado no Allwinner H3, placa semelhante à Raspberry Pi.
Para automação residencial, emuladores, etc.

Imagens apenas ilustrativas.

Inclui caixa com ventilador.

Especificações:

CPU: H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU:
·Mali400MP2 GPU 600MHz
·Supports OpenGL ES 2.0

Memory (SDRAM): 1GB DDR3 (shared with GPU)
Onboard Storage: TF card (Max. 32GB) / MMC card slot
Onboard Network: 10/100M Ethernet RJ45
Video Input: A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface: Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor: Supports video capture solution up to 1080p – 30fps
Audio Input: MIC
Video Outputs: Supports HDMI output with HDCP
Supports HDMI CEC: Supports HDMI 30 function
Integrated CVBS: Supports simultaneous output of HDMI and CVBS
Audio Output: 3.5 mm Jack and HDMI
Power Source: DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports: Three USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button (SW4)
Low-level peripherals: 40 Pins Header
GPIO (1×3) pin: UART, ground.
LED: Power Led & Status Led
Key: IR input, POWER
